Quality Wholesale Hollow Block Making Machine QT10-15

HOGAR PRODUCTOS Máquina para fabricar bloques de hormigón

Quality Wholesale Hollow Block Making Machine QT10-15

Quality Wholesale Hollow Block Making Machine QT10-15

The QT10-15 features an imported high-efficiency hydraulic proportion system with pure components. This advanced technology ensures superior energy conservation and operational efficiency. It delivers precise hydraulic control, reducing power consumption while increasing block forming force. The system enhances cycle speed, lowers heat generation, and extends component life.

  • Modelo :

    Yixin Machinery QT10-15

  • Dimensiones de la máquina :

    11500*4050*2800

  • Tamaño del palé :

    1100*880（mm）

  • Tiempo de ciclo :

    15-20（S）

  • Fuerza de vibración :

    105(KN)

  • Presión variable :

    21（mpa）

  • Fuerza :

    45.2(KW)
CONSULTE AHORA

 Quality Wholesale Hollow Block Making Machine QT10-15

Reference video of QT10-15 hollow block making machine

The QT10-15 Extend type integrates high-efficiency vibrotechnique for faster forming and superior compactedness. Its enhanced vibration system ensures rapid, uniform material consolidation, reducing cycle time while boosting block density. This technology minimizes void content, producing stronger, more durable blocks. The extended design accommodates higher production volumes without compromising stability.





 Production Data

Block Type Specification（mm） Qty/Palllet Qty/Hour Qty/Hours
Hollow Block 400*200*200 10 1800 14400-19200
Solid Block 240*115*53 51-56 13440 74880-99840
Holland Block 200*100*60 35 6300 50400
Zigzag Block 225*112.5*60 30 5400 43200



Product Detail

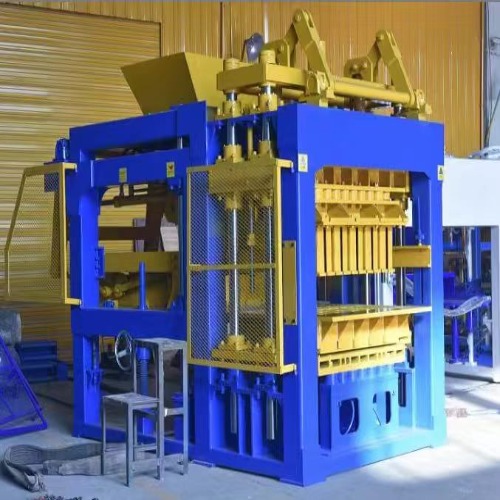

  • cast vibration table
    The cast vibration table on the QT10-15 ensures high-density block production through dual-shaft forced synchronization. It delivers uniform, high-frequency vibration directly to the mold, significantly accelerating material flow and eliminating air voids. This design guarantees immediate and thorough compaction for superior green strength, allowing for immediate demolding.

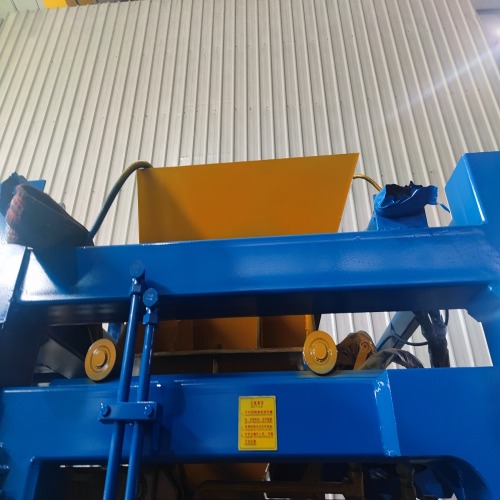

  • raw material hopper
    The raw material hopper on the QT10-15 features a large, wear-resistant capacity, ensuring continuous feeding for hollow block production. Its dual-shaft forced mixing system prevents material bridging and improves uniformity. The hopper includes a level sensor to avoid overflows or shortages, while the quick-loading design reduces cycle time. Easy to clean and maintain, it supports various aggregates like crushed stone, fly ash, or slag.

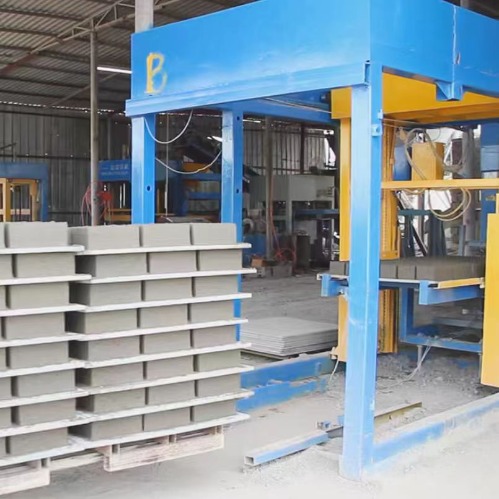

  • block stacker
    The automatic blocks stacker seamlessly stacks freshly formed blocks from the QT10-15 machine. It transfers green blocks onto wooden or steel pallets, then lifts and arranges them into stable, layered stacks for curing. This system reduces manual handling, prevents edge damage, and optimizes yard space. With adjustable stacking patterns, it handles various block sizes efficiently.








Block Type

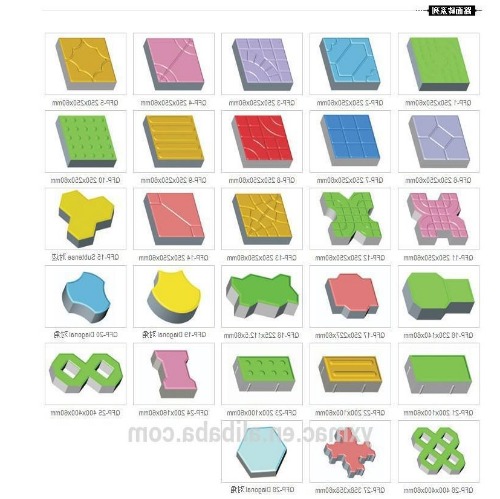

  • mould more durable and more firm

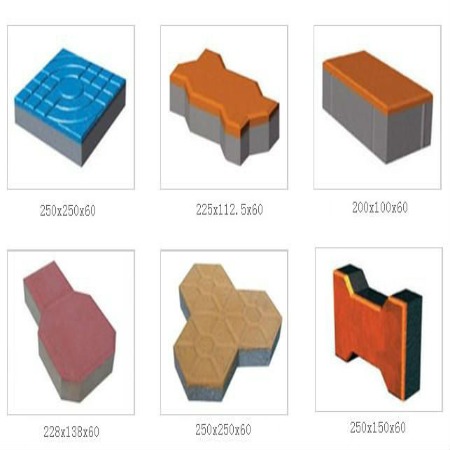

  • forming production faster

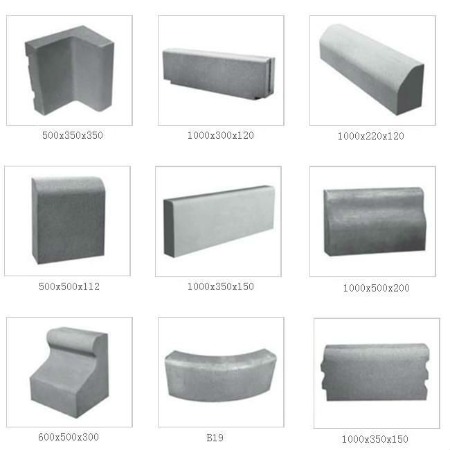

  • higher compactedness block

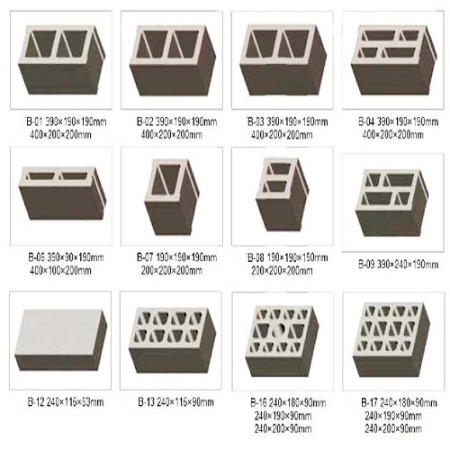

  • Durable solid block




The high-heat treatment technology applied to the QT10-15 block machine significantly enhances mould durability and structural integrity. This specialized process hardens the metal surface, resisting wear, impact, and thermal fatigue during continuous production. As a result, the mould maintains precise shape over extended cycles, reducing downtime for replacements.





     Professional Shipping

  • more efficient and energy conseryation

  • multi-hole brick

  • Ripple shape block


The QT10-15 can be equipped with an optional secondary materials device, enabling the production of all types of colorful paving blocks. This flexibility allows you to create multi-layer blocks with premium surface color and lower-cost base materials, significantly reducing production costs. The device ensures uniform color distribution and high surface finish, expanding your product range for landscaping, walkways, and urban decoration projects.

  •
  •



FAQ

1.How long does the product production cycle typically take?

Quality Wholesale Hollow Block Making Machine QT10-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Quality Wholesale Hollow Block Making Machine QT10-15?

The raw materials utilized in the production process of Quality Wholesale Hollow Block Making Machine QT10-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the Quality Wholesale Hollow Block Making Machine QT10-15 after mold confirmation?

The estimated date of shipment for the Quality Wholesale Hollow Block Making Machine QT10-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5. Can the Quality Wholesale Hollow Block Making Machine QT10-15 be equipped with an additional device to produce various types of colored paving blocks?

  Yes, the Quality Wholesale Hollow Block Making Machine QT10-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks.
