Name: Professional Technology Main Equipment Of Heavy Duty Making Road Paver Blocks QT15-15
Availability: InStock

Professional Technology Main Equipment Of Heavy Duty Making Road Paver Blocks QT15-15

Reference video of HD15-15 road paver block makming machine

The dynamic and static vibration table ensures high-density block formation by combining dual vibration systems. The durable bar, cast vibration box, and synchronized vibration shaft work together to deliver uniform, powerful force directly to the mould. This design guarantees consistent compaction, reduced voids, and excellent structural strength in road paver blocks. The system supports both instant dynamic vibration for fast shaping and sustained static vibration for surface finishing, resulting in superior product quality, longer mould life, and reliable performance under continuous industrial operation.

Production Data

Block Type	Specification（mm）	Qty/Pallet	Qty/Hour	Qty/8 Hours
Hollow Block	400200200	15	2750	22000
Solid Block	24011553	84	20625	165000
Holland Paver	20010060	55	10890	87120
Zigzag Paver	225112.560	40	7920	63360

Product Detail

The QT15-15 features stirring teeth arranged in rows, enabling rapid and uniform material feeding into the mold for increased efficiency. Its stirring balance shaft is driven by a motor, which activates a disc that moves a small swing arm to push material forward. This design ensures smooth, balanced material flow, reduces block formation inconsistencies, and supports continuous heavy-duty production with minimal manual intervention.
The QT15-15 features wear-resistant strips designed for quick and effortless replacement, significantly reducing machine downtime. Unlike integral cast steel components that require complete part replacement when worn, these strips can be swapped individually. This modular approach simplifies routine maintenance, lowers repair costs, and extends the machine’s service life. Operators benefit from enhanced convenience and improved productivity, as servicing becomes faster and less labor-intensive.
The pressure meter on the QT15-15 allows precise adjustment of the airbag pressure, ensuring consistent compaction of concrete blocks. By monitoring and regulating the air pressure, operators can achieve optimal density and strength for heavy-duty applications. Accurate pressure control prevents over-compaction or under-compaction, reducing material waste and improving product uniformity. This feature enhances machine reliability, extends component life, and supports efficient production of high-quality blocks for demanding construction projects.

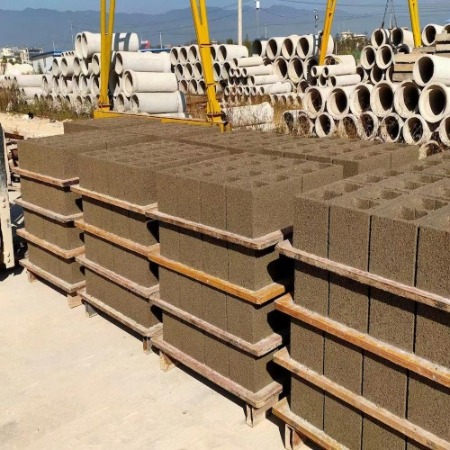

Block Display

This professional block making machine uses a Germany brand Continental airbag with a precise pressure control system. The airbag delivers extra dynamic force to the mould frame during brick production, enhancing compaction density and product quality. Operators can easily change and fix moulds without heavy tools, reducing downtime. The system improves efficiency, ensures consistent block strength, and simplifies maintenance, making it ideal for producing road paver blocks in demanding environments.

Exhibition Experience

The demolding system of this professional technology main equipment for making road paver blocks operates with enhanced speed and stability. It reduces cycle time significantly while ensuring consistent block release without surface damage or cracking. The advanced mechanism maintains precise control during separation, minimizing vibration and alignment errors. This leads to smoother production flow, lower rejection rates, and improved operational safety. Faster demolding allows higher output per hour, and the stable action protects mold integrity over extended use. Overall, it delivers reliable performance for high-volume block production lines.

FAQ

1.What types of products can be produced using Professional Technology Main Equipment Of Making Road Paver Blocks?

Professional Technology Main Equipment Of Making Road Paver Blocks can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.

2. What is the production capacity of the Professional Technology Main Equipment Of Making Road Paver Blocks?

This machine can produce up to 2750 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs.

3.What are the raw materials used in the production process of Professional Technology Main Equipment Of Making Road Paver Blocks, and can it incorporate industrial waste materials?

The raw materials utilized in the production process of Professional Technology Main Equipment Of Making Road Paver Blocks primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What are the payment terms?

The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods.

5. How automated is the system? Do I need a lot of skilled workers to operate it?

The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training.
