High Technology Automatic Heavy Duty Hollow Block Making Machine QT8-15
The QT8-15 utilizes a dual-pump hydraulic system that delivers high pressure during pressing and reduces flow during auxiliary actions. This on-demand control lowers energy consumption by up to thirty percent. Servo-regulated valves enable precise positioning of molds and compaction stroke, ensuring consistent block density. The intelligent logic also minimizes heat generation and extends component life, giving you accurate, cost-efficient production for heavy duty hollow blocks.
Modelo :
Yixin Machinery HD8-15Dimensiones de la máquina :
10800*3600*2800Tamaño del palé :
940*860(MM)Tiempo de ciclo :
11-25(S)Fuerza de vibración :
95(KN)Presión variable :
21(MPA)Fuerza :
46.2(KW)High Technology Automatic Heavy Duty Hollow Block Making Machine QT8-15
Reference video of HD8-15 hollow block making machine
The QT8-15 features long guide sleeves that deliver exceptional stability and balance during operation. These guiding bushes are designed to raise and lower smoothly, which significantly reduces friction and mechanical wear. This intelligent movement extends the service life of critical components and ensures consistent block production with minimal downtime. Operators benefit from reduced maintenance needs and enhanced machine reliability, even under continuous heavy-duty use. The result is higher productivity, lower operating costs, and long-term durability for hollow block manufacturing.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 8 | 1584 | 12672 |
| Solid Block | 240*115*53 | 42 | 11088 | 88704 |
| Holland Paver | 200*100*60 | 28 | 5544 | 44352 |
| Zigzag Paver | 225*112.5*60 | 24 | 4752 | 38016 |
Product Detail
Block Type

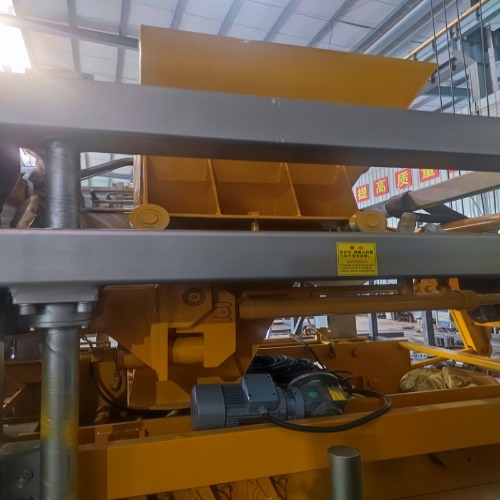

The flexible feeding arm on the QT8-15 is designed to push the material cart with enhanced stability. It ensures smooth, precise movement during block production, reducing vibration and material spillage. This improves cycle efficiency and extends component life. The arm adapts to varying material loads automatically, maintaining consistent cart travel. Ideal for heavy-duty use, it lowers maintenance needs and supports continuous operation in high-output environments.
The QT8-15 feeding car integrates advanced buffering and vibration reduction technology. High-density rubber cushions and hydraulic dampers work together to absorb impact during material loading and travel. This significantly reduces mechanical stress on the carriage rail and frame, ensuring smooth, precise material distribution. The system minimizes noise and wear, prolongs service life of moving parts, and maintains consistent block density. Operators benefit from quieter cycles, lower maintenance frequency, and improved production stability. Reliable even under continuous heavy-duty operation, the buffering design protects both the machine and the final product quality.
| FAQ |
|
1.What types of products can be produced using Yixin Machinery Factory Wholesale High Technology Automatic Heavy Duty Hollow Block Making Machine QT8-15?
Yixin Machinery Factory Wholesale High Technology Automatic Heavy Duty Hollow Block Making Machine QT8-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks. |
|
2. What is the production capacity of the Yixin Machinery Factory Wholesale High Technology Automatic Heavy Duty Hollow Block Making Machine QT8-15?
This machine can produce up to 1584 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs. |
|
3.What are the raw materials used in the production process of Yixin Machinery Factory Wholesale High Technology Automatic Heavy Duty Hollow Block Making Machine QT8-15, and can it incorporate industrial waste materials?
The raw materials utilized in the production process of High Technology Automatic Heavy Duty Hollow Block Making Machine QT8-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What are the payment terms?
The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods. |
|
5. How automated is the system? Do I need a lot of skilled workers to operate it? The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training. |
