Name: Fully Production Hydraulic Heavy Duty Solid Block Making Machine QT6-15
Availability: InStock

Fully Production Hydraulic Heavy Duty Solid Block Making Machine QT6-15

Reference video of HD6-15 solid block making machine

The advance and retreat cushion pads on the QT6-15 feeding car are designed to provide effective buffering and vibration reduction during operation. Made from durable, wear-resistant material, these pads absorb impact forces at both ends of the car's travel, ensuring smooth and quiet directional changes. By minimizing mechanical shock, they protect the feeding car and associated components from premature wear. The reduced vibration also enhances the stability of material distribution into the mold, leading to more consistent block density and improved production reliability in fully hydraulic, heavy-duty operation cycles.

Production Data

Block Type	Specification（mm）	Qty/Pallet	Qty/Hour	Qty/8 Hours
Hollow Block	400200200	6	1188	9504
Solid Block	24011553	32	8448	67584
Holland Paver	20010060	21	4185	33264
Zigzag Paver	225112.560	20	3960	31680

Product Detail

The long guide sleeves on the QT6-15 solid block machine provide exceptional stability and balance during the entire production cycle. Designed for heavy-duty operation, these guiding bushes can be raised and lowered to significantly reduce friction-related wear. This smart engineering solution extends the service life of moving parts while maintaining precise alignment under high-pressure hydraulic force. By minimizing metal-to-metal contact and distributing loads evenly, the system ensures consistent block density, lowers maintenance requirements, and keeps the machine running smoothly even in continuous, demanding production environments.
The pressure meter on the QT6-15 solid block machine enables precise adjustment of airbag pressure for optimal block compaction. By monitoring and regulating the air pressure in real time, operators can fine-tune forming force according to material mix and block density requirements. This control ensures uniform compression across every block, reducing internal voids and improving structural integrity. The meter’s responsive design supports quick pressure changes during production cycles, enhancing molding consistency. Proper airbag pressure adjustment also reduces wear on hydraulic components, extending machine life and maintaining high output quality in heavy-duty, fully hydraulic operations.
The servo hydraulic system of the QT6-15 block machine delivers on-demand hydraulic power precisely aligned with machine movement. By automatically adjusting pressure and flow according to real-time load requirements, it significantly reduces idle energy consumption and heat generation. This intelligent control enables smoother, more accurate motions for all heavy-duty operations, from material compression to mold vibration. Operators benefit from faster cycle times, lower electricity costs, and improved block dimensional consistency. Designed for fully automatic production, the system enhances equipment longevity while maintaining stable performance under continuous, demanding workloads.

Block Display

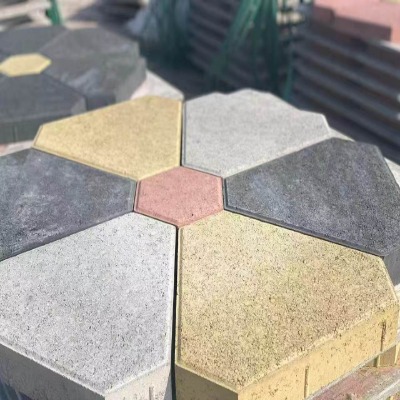

The QT6-15 block making machine supports an optional second material layer device, enabling the production of all types of color paving blocks. This feature allows the machine to add a thin, colored surface layer over the base material, creating decorative and durable pavers for landscaping, driveways, and public squares. The hydraulic system ensures consistent pressure and even material distribution between layers. By integrating the second device, manufacturers can easily switch from solid blocks to multi-color paving stones without additional equipment, significantly expanding product range and market flexibility.

Exhibition Experience

The air bag system on the QT6-15 block machine firmly locks the mold during production, effectively reducing vibration transfer between moving parts. This pneumatic locking mechanism stabilizes the mold position throughout the compaction cycle, ensuring consistent block height and density. By absorbing shock and minimizing lateral movement, the air bag enhances forming accuracy and reduces wear on mold components. The result is cleaner block edges, smoother surface finish, and extended mold service life. This feature is essential for heavy-duty operations requiring stable, high-quality output with minimal maintenance interruptions

FAQ

1.What types of products can be produced using Fully Production Hydraulic Heavy Duty Solid Block Making Machine QT6-15?

Yixin Machinery Fully Production Hydraulic Heavy Duty Solid Block Making Machine QT6-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.

2. What is the production capacity of the Yixin Machinery Factory Supplier Fully Production Hydraulic Heavy Duty Solid Block Making Machine QT6-15?

This machine can produce up to 1188 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs.

3.What are the raw materials used in the production process of Yixin Machinery e Fully Production Hydraulic Heavy Duty Solid Block Making Machine QT6-15, and can it incorporate industrial waste materials?

The raw materials utilized in the production process of Fully Production Hydraulic Heavy Duty Solid Block Making Machine QT6-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What are the payment terms?

The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods.

5. How automated is the system? Do I need a lot of skilled workers to operate it?

The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training.
