Name: Fully Production Free Pallet Cement Block Making Machine YXMT18-25
Availability: InStock

Fully Production Free Pallet Cement Block Making Machine YXMT18-25

Reference video of YXMT18-25 cement block making machine

This machine integrates a West Germany high-performance vibro system, delivering strong vibration for superior compaction. The result is dense, uniform blocks with minimal cement usage. Its efficient design shortens the forming cycle significantly, boosting overall production speed. Fully automated pallet-free operation reduces labor and eliminates pallet costs. Ideal for high-capacity projects, the YXMT18-25 ensures consistent quality, fast mold change, and low maintenance, making it a reliable solution for industrial-scale block production.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	390190190	18	2592	20736-28800
Solid Block	24011553	105	15210	121680-16800
Hollow Block	24011590	50	7200	57600-80000
Holland Paver	20010060	66	9504	76032-105600

Product Detail

The autognostic function of the YXMT18-25 continuously monitors key operation parameters such as hydraulic pressure, vibration frequency, and motor load. It instantly detects abnormalities and provides diagnostic alerts to prevent mechanical failures. The guiding function offers intuitive prompts for adjustment and maintenance, helping operators correct issues in real time. Together, these features ensure high machine reliability, reduce unplanned downtime, and support stable production of free pallet cement blocks with minimal manual intervention.

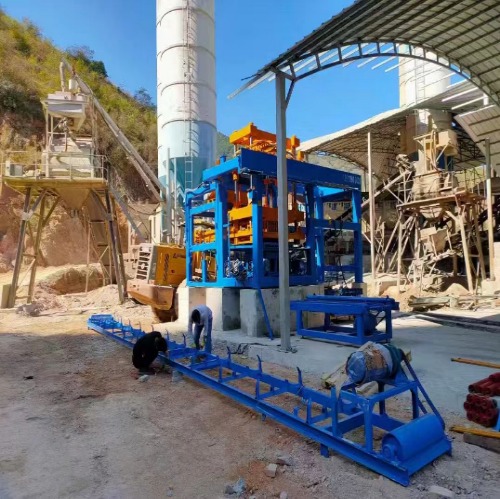

The YXMT18-25 fully production free pallet cement block making machine features an intelligent self-diagnostic system. When a fault occurs, the machine halts immediately and activates an audible-visual alarm to prevent further damage or unsafe operation. Crucially, the control panel then displays a specific error code along with a clear, step-by-step solution proposal. This guides the operator to quickly resolve issues such as material jams or sensor misalignment, reducing downtime and maintenance complexity for continuous, efficient block production.
The YXMT18-25 integrates hydraulics, electronics, and mechanics into a unified system for fully production free pallet block making. Its advanced hydraulic drive ensures consistent high compaction force across all cycles, while electronic sensors monitor pressure and vibration in real time. This synergy delivers efficient, automated operation with rapid mold changeover and low energy use. The machine achieves superior block density and dimensional accuracy without pallets, reducing material handling. Ideal for large-scale production, it combines reliability with high output, lowering per-unit costs and simplifying maintenance.

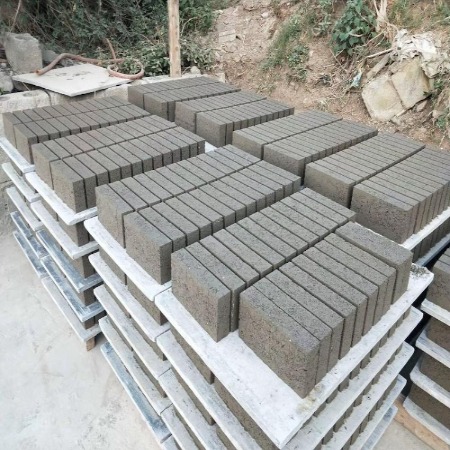

Block Display

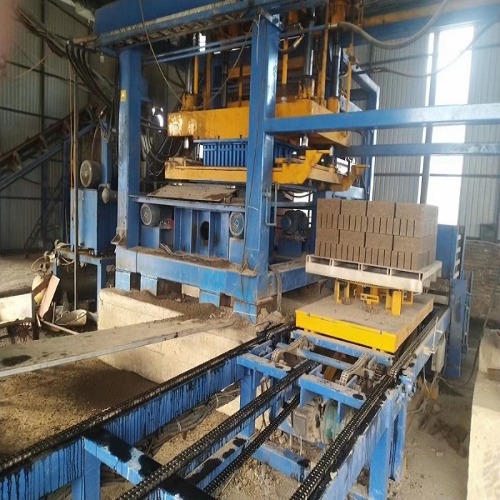

This machine integrates Germany’s advanced hydraulic technology with a multi-hydraulic driving system. The absorption of German hydraulic engineering ensures powerful, stable transmission. The multi-hydraulic drive significantly enhances vibration intensity, directly shortening the forming cycle while boosting product strength.

Customers Access

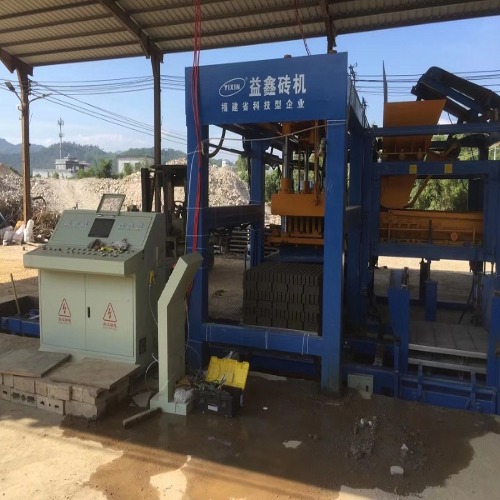

The YXMT18-25 fully production free pallet cement block making machine features a hanging type tow-way positioning material holder. This design significantly reduces operational resistance, ensuring smooth and efficient material handling. It effectively eliminates product inconsistencies caused by board thickness errors. By maintaining precise positioning and stable performance, the system enhances block uniformity and production reliability.

FAQ

1.What exactly does "free pallet" mean in this machine, and how does that impact my production costs?

"Free pallet" means the machine operates without the need for wooden or steel pallets to carry the blocks during the curing process. The blocks are ejected directly onto a curing rack or floor. This eliminates the significant recurring cost of purchasing, maintaining, and replacing pallets, which in high-volume projects can save you tens of thousands of dollars annually. It also reduces labor costs associated with pallet handling and stacking.

2.We work on large construction projects with variable raw material quality. How stable is this machine with different fly ash and aggregate ratios?

The YXMT12-25 is engineered with a high-pressure hydraulic system and a servo-controlled vibration system. This combination allows it to adapt to a wide range of mix designs, from high fly ash content to crushed stone aggregates. The vibration frequency and pressing force are adjustable via the PLC control system, ensuring consistent block density and strength even if your raw material quality varies slightly, as long as you maintain a consistent water-to-cement ratio.

3.What kind of warranty and after-sales support do you provide for a project-based buyer like us?

We offer a standard 24-month warranty on the main structure and hydraulic system, and a 12-month warranty on electrical components and the PLC. More importantly for project timelines, we provide on-site commissioning by our engineers and a 48-hour response guarantee for any critical service requests.

4.How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil .

5. Can the machine’s layout or dimensions be modified?

Yes, we provide layout customization. If you have space limitations, we can redesign the arrangement of the conveyor system, pallet feeder, and stacker to fit your facility. We will work with your facility layout plan to ensure smooth integration without sacrificing automation efficiency.
