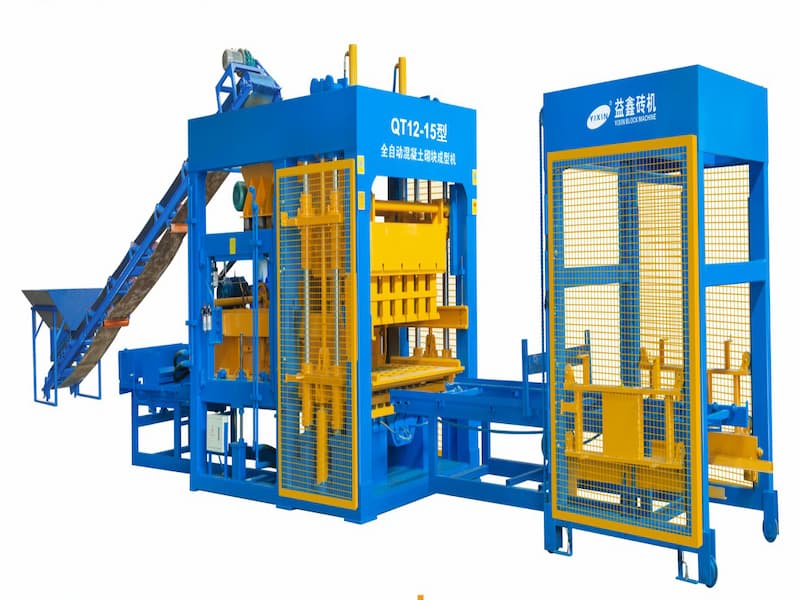

Factory Certification Fully Set PC Stone Block Forming Machine QT12-15
The QT12-15 Fully Set PC Stone Block Making Machine from Yixin Machinery is engineered for large-scale industrial production of high-quality concrete blocks and pavers. Its primary application is in construction material manufacturing plants and precast concrete factories that require high output and consistent quality. The machine is ideal for producing standard blocks, hollow blocks, interlocking pavers, and curbstone with precision and efficiency. Its automated system ensures minimal manual intervention, making it suitable for continuous operation. The robust design allows it to handle heavy-duty cycles, providing reliable performance for infrastructure projects, commercial building developments, and residential construction ventures that demand durable and aesthetically pleasing concrete products.
Modelo :
Yixin Machinery QT12-15Dimensiones de la máquina :
1200*4550*2800(MM)Tamaño del palé :
1350*880(MM)Tiempo de ciclo :
15-20(S)Fuerza de vibración :
109(KN)Presión variable :
21(MPA)Fuerza :
60.2(KW)Hydraulic Pressure Solid Brick Forming Machine QT12-15
Reference video of hydraulic pressure solid brick forming machine QT12-15:
The QT12-15 Hydraulic Pressure Solid Brick Forming Machine is a state-of-the-art automated equipment designed for high-efficiency production of concrete blocks, hollow bricks, paving stones, and other construction materials. Leveraging advanced German engineering and integrated with modern hydraulic and PLC control technologies, this machine stands out for its robustness, precision, and versatility in the construction material manufacturing industry.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 12 | 2160 | 17280 |
| Solid Brick | 240*115*53 | 70 | 2160 | 134400 |
| Holland Paver | 200*100*60 | 44 | 7920 | 63360 |
| Zigzag Paver | 225*112.5*60 | 32 | 5760 | 46080 |
Product Detail
The QT12-15 product display showcases the machine's exceptional output range and quality. Featured prominently are PC stone blocks, paving stones, hollow blocks, and interlocking tiles—each exhibiting clean edges, uniform density, and precise dimensions. The display highlights the high-frequency vibration system and hydraulic pressure that ensure superior compaction, resulting in products with excellent strength and surface finish. Also demonstrated is the machine's versatility through quick mold changes, allowing production of various sizes, textures, and colors with minimal downtime. The QT12-15 product display proves how this factory-certified, fully automated machine delivers reliability, efficiency, and consistent quality for professional PC stone block manufacturers.
Block Type
The QT12-15 produces a premium range of PC stone blocks ideal for landscaping, driveways, walkways, and architectural projects. The display showcases paving stones, hollow blocks, interlocking tiles, and decorative wall blocks—each featuring clean edges, uniform density, and precise dimensions. Thanks to the high-frequency vibration system and powerful hydraulic pressure, every block achieves exceptional compressive strength, low water absorption, and excellent surface finish. Available in various shapes, colors, and textures with quick mold changes, the display demonstrates the machine's versatility. These durable, weather-resistant PC stone blocks meet international quality standards for residential and commercial applications worldwide.
| FAQ |
|
1. How many days to change vibration box oil ,what kind of oil can be used inside? The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil. |
|
2. Can the QT12-15 Hydraulic Pressure Brick Forming Machine be equipped with an additional device to produce various types of colored paving blocks? Yes, the QT12-15 Hydraulic Pressure Brick Forming Machine can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks. |
|
3.How long does the product production cycle typically take?
QT12-15 Hydraulic Pressure Brick Forming Machine can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.
|
|
4.Does the machine come with installation and training support?
Yes, we provide on-site installation guidance, operator training, and after-sales technical support to ensure smooth startup and ongoing operation. Remote troubleshooting, spare parts supply, and maintenance services are also available.
|
|
5.Does the QT12-15 machine support customization?
Yes, we support full customization. Options include mold designs for various solid brick sizes and shapes, hydraulic system configurations, control system upgrades (PLC/fully automatic/semi-automatic), voltage and frequency specifications, and machine color. Customized production line layouts are also available to suit your facility requirements.
|
