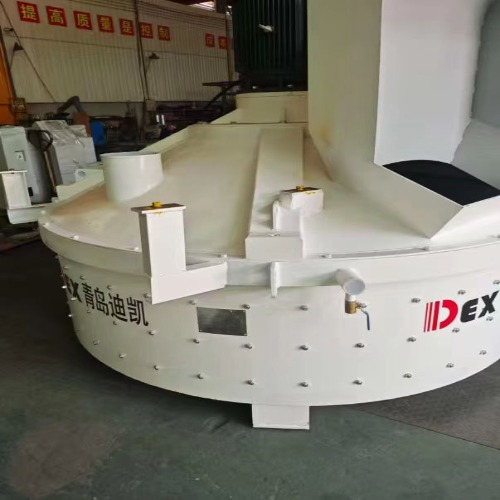

Eco-friendly Multi-functional Planetary Concrete Mixer MP Serie

Reference video of Eco-friendly Multi-functional Planetary Concrete Mixer MP Serie:

The MP Serie is an eco-friendly, multi-functional planetary concrete mixer designed for high-performance mixing of precast concrete, colored pavers, and dry cast materials. Featuring advanced planetary mixing action, it ensures uniform material distribution, consistent batch quality, and excellent color dispersion. Its energy-efficient operation reduces power consumption while wear-resistant linings extend service life. Versatile design accommodates various mix formulations, including fly ash, fibers, and recycled aggregates. A reference video is available to demonstrate the mixing cycle, discharge process, and cleaning access. Ideal for eco-conscious block plants seeking efficiency, durability, and mixing versatility.

Tech Data

Type	MP330	MP550	MP750	MP1000
Charging Volume（L）	500	750	1125	1500
Discharging Volume（KG）	800	1200	1800	2400
Discharging Volume（L）	330	500	750	1000
Mixing Blade（PCS）	1*2	1*2	1*3	2*2
Power of Mixing Motor（KW）	15	18.5	30	37

Product Details

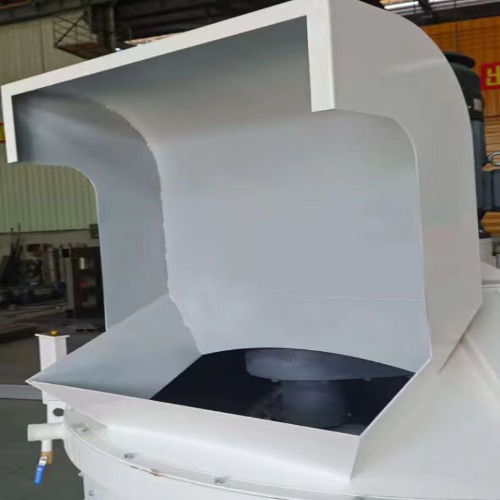

The MP Serie features a hydraulically operated discharge outlet designed for fast, clean material evacuation. Constructed with wear-resistant steel and equipped with a tight-sealing gate, it prevents leakage and material buildup during mixing cycles. The wide opening allows rapid, complete discharge of concrete mixtures, including dry-cast and zero-slump materials. The user-friendly control can be set to automatic timed opening or manual mode. Easy-access design simplifies cleaning and maintenance.

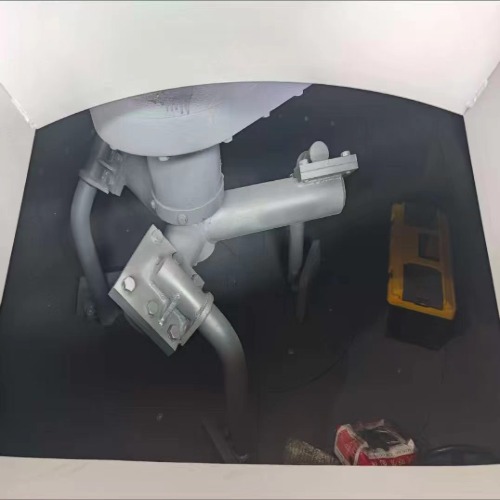

The MP Serie features an advanced planetary mixing device designed for superior concrete homogeneity. Multiple mixing tools, including scrapers and mixing arms, rotate simultaneously on their own axes while orbiting the mixing pan, ensuring complete coverage with no dead zones. Constructed from high-strength wear-resistant steel, these tools efficiently handle aggregates, colored concrete, dry-cast materials, and fibers. The unique planetary action provides intense but gentle mixing, preserving aggregate integrity while achieving uniform cement distribution.
The MP Serie is equipped with a powerful hydraulic discharge device designed for rapid, controlled material release. Featuring a heavy-duty hydraulic cylinder and wear-resistant discharge gate, this device ensures smooth, leak-free operation even with dry-cast and zero-slump concrete mixtures. The intelligent control system allows precise opening angle adjustment for variable discharge speeds. Quick cycle time minimizes batch intervals, increasing overall productivity.

Block Display

Optimized for high-performance precast operations, the MP Series delivers superior mixing uniformity through its advanced planetary gear system. The dual-shaft planetary action ensures complete paste dispersion, guaranteeing every batch meets the stringent requirements for architectural concrete, paving stones, and structural elements.

Professional Shipping

Designed with global delivery and on-site installation in mind, the MP Series Planetary Concrete Mixer is packaged and shipped to meet the highest standards of industrial logistics. Each unit undergoes rigorous quality testing prior to dispatch to ensure zero-defect delivery.

FAQ

1.How many liter hydraulic oil used?

68 degree hydraulic oil 600L request.

2.Can the MP Series mixer be customized to fit my existing precast production line?

Yes. The MP Series is designed with modular flexibility to integrate seamlessly into a wide range of precast production layouts. We offer customized configurations for inlet/outlet positions, discharge height, control system integration, and mounting interfaces to match your existing batching plant, conveyors, and mold handling systems.

3.Does the Yixin Machinery Planetary Mixer MP Serie provide versatility?

This multi-function concrete mixer is designed to meet a wide range of concrete mixing needs, making it an efficient and cost-effective choice for any construction project.

4.What makes planetary mixing ideal for precast applications?

Planetary mixers feature a rotating mixing tool that travels around the mixing pan, ensuring: Exceptional mixing uniformity Gentle handling of aggregates Superior color consistency for colored concrete.

5.What lining options are available?

We offer multiple lining options to suit different applications: Wear-resistant steel: For general precast applications Rubber lining: For reduced noise and gentle aggregate handling Ceramic lining: For extended wear life and minimal maintenance Polyurethane lining: For colored concrete and easy cleaning.
